Technical Specification：

Voltage: AC110~240V, 50/60HZ
Rated power: 500W
Bulb specifications: 380W
Rated life: ≥2000H

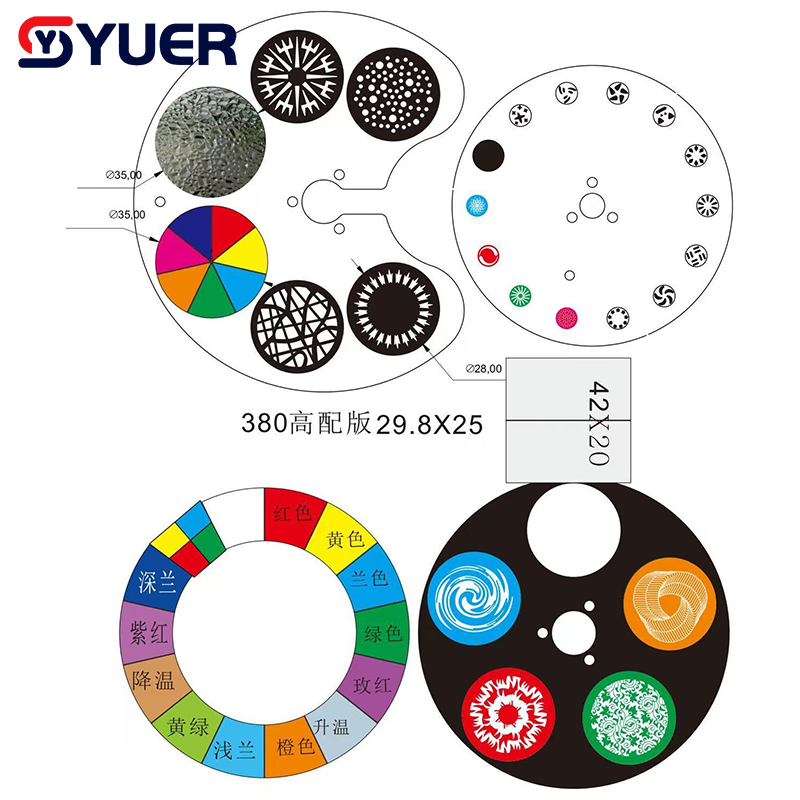

Color plate: 13 color plates + white light
Pattern plate 1: 10 beam patterns + 3 wave patterns + white light, with bidirectional flow, variable speed jitter effect
Pattern plate 2: 4 metal patterns + 1 diamond + 1 colorful
Rotating pattern plate: 4 rotating pattern plates, pattern plate with superposition function
Prism plate: honeycomb 8+16+24 prisms, can rotate in both directions
Control mode: international standard DMX512 signal, 3-core, 5-core DMX512 interface
Channel mode: 19CH international standard DMX512 channels
Strobe: The strobe frequency can be up to 1-20 times per second, and random strobe and pulse strobe can be selected
Dimming: 0%~100% linear dimming
Horizontal scan: 540° (16bit precision scan) Electronic error correction
Vertical scanning: 250° (16-bit precision scanning) Electronic error correction
Waterproof grade: high temperature resistant engineering plastic, IP20
Horizontal and vertical speeds are adjustable, Chinese and English dual display, display lamp bulb usage time, ≥1.8-inch color display screen.
Other functions: with RDM function, the console can adjust the address code.

Product size：27*21*50cm

Packing size：56*38*44cm

Net weight:10.6KG

Gross Weight：14.9KG
