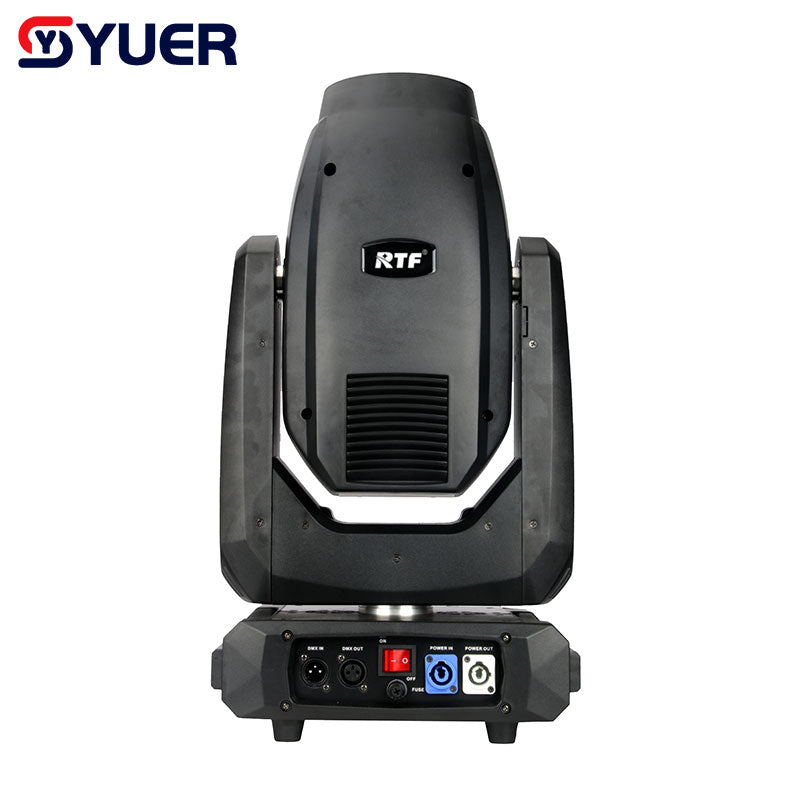

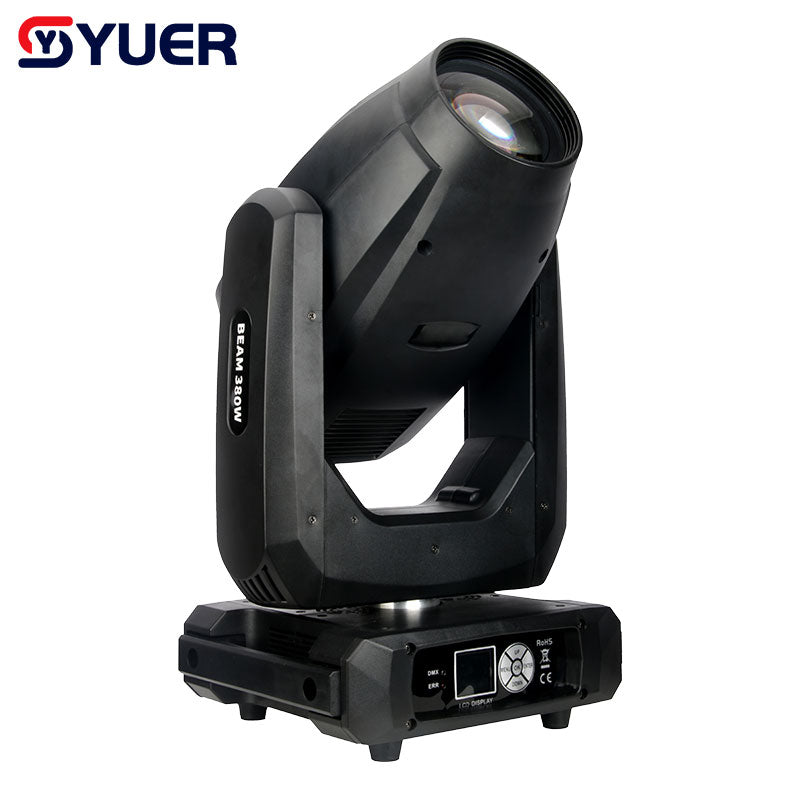

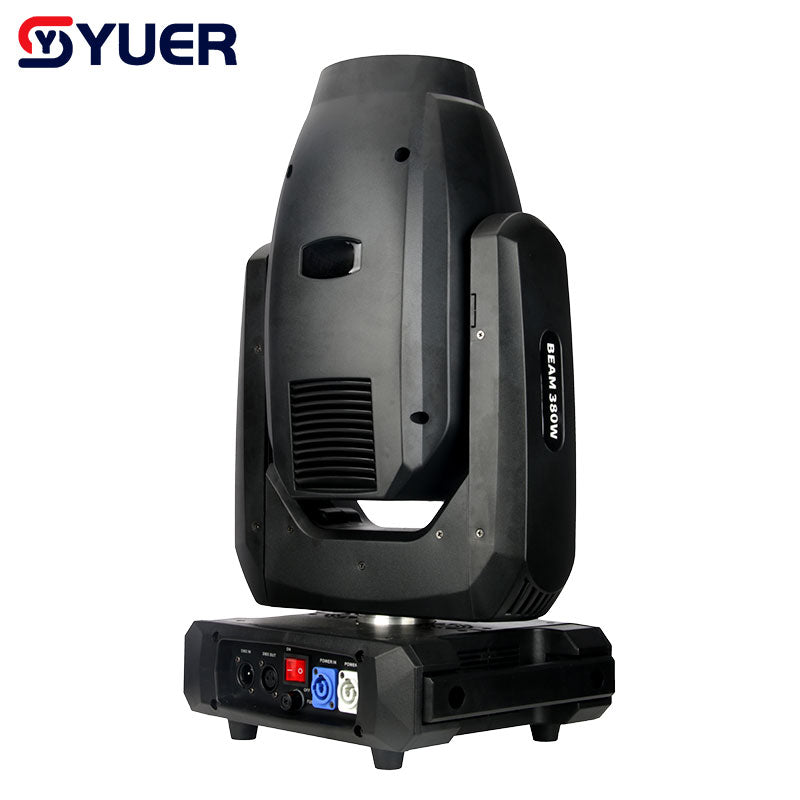

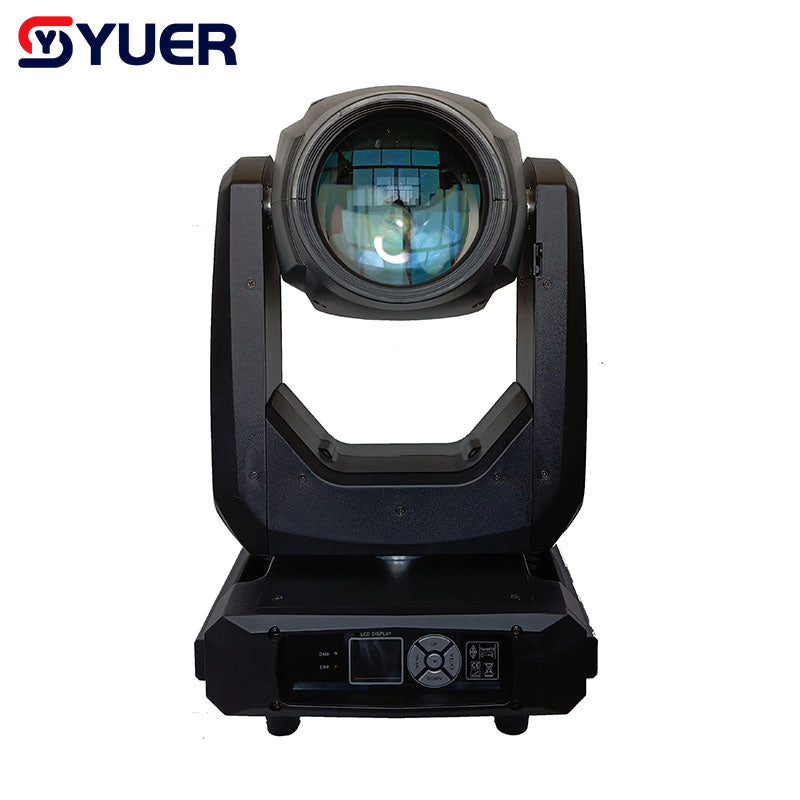

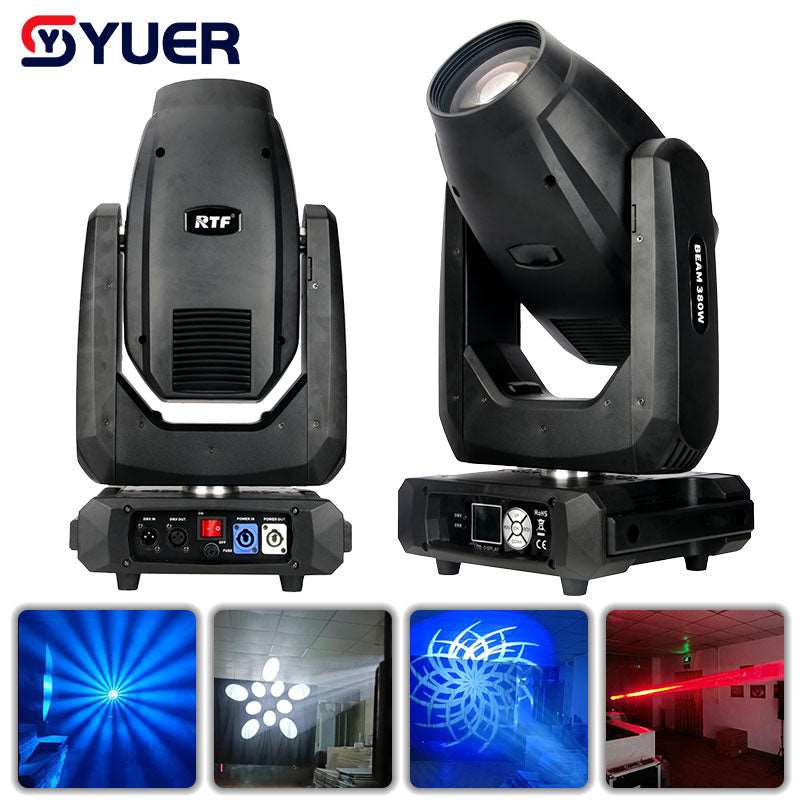

YUER™️ Professional OSRAM 380W 19R Beam Wash Spot 3in1 Moving Head DMX 512 Lights Club DJ Stage Bar Disco Party Lighting

2 sold in last 8 hours
Añadir a la lista de deseos
customers are viewing this product

Technical Parameters:

Control channel: DMX512 16/24 two channel modes

Control mode: DMX mode, master mode, slave mode, self-propelled mode

Voltage: AC 90~240V, 50~60Hz

Lamp bead: MSD R19 380W

Lumen value: 130000 Lux (5 meters)

Lamp bead life: 2000 hours

Total power: 650W

Display function:

2.8 inches, 18 million pixel color LCD touch screen
The display screen can be rotated 180 degrees to display the life of the lamp and the function of the lamp
You can directly input the designated trademark and model, and you can edit the text of multiple countries
Display conversion data transmission fault automatic diagnosis display system
All functions of the lamp can be set directly on the display screen

Lamp function:

Lighting software: software programs and hardware modules are independently developed, using high-tech constant current circuit boards, 36V, 12V dedicated voltage supply, strong anti-interference ability, all PCB board components are selected first-class brands at home and abroad to ensure that each Electronic components work stably for a long time
Lamp rotation: three-phase X/Y-axis high-speed silent motor, the running noise of the lamp can be used in any place X-axis angle: 540°, 16/32bit, precision 2.45°/step, fine-tuning accuracy 0.018°, rotation time 2.3 seconds Y-axis angle: 246°, 16/32bit, precision 2.12°/step, fine-tuning precision 0.016°, rotation time 1.8 seconds X/Y axis positioning: optical coupling positioning, advanced scanning position memory function, making the step angle smaller and positioning more accurate , Absolute position memory, DMX off-line power-off position recovery and maintenance, accidental misoperation can be automatically solved and corrected, with strong anti-interference ability
Optical lens: The diameter of the light output lens is 120mm, high light transmittance, very uniform light spot, the brightness difference between the edge and the center of the circle does not exceed 5%, full, sharp, and superior light perception
Insulation glass: Taiwan's special high-temperature-resistant material is used, which is derived from Germany's high-tech coating technology, so that the heat insulation effect and light transmittance of the lamp are perfectly guaranteed
Color plate: The color film is made of Taiwan's special high-temperature-resistant raw materials, derived from German high-tech coating technology, multi-layer high-efficiency coating, bright and full colors, 14 colors + white light, with half-color effect and rainbow effect, using any color can be calculated Restore the white light effect at the shortest speed
Gobo plate: Aluminum pattern plate with Taiwan and Germany technology, 17 static metal gobos + white light, with pattern vibration effect
Rotating gobo wheel: Using 7 dynamic gobos + white light, each gobo can rotate the effect gobo wheel at high speed
Lighting strobe: 2 pieces of high-temperature-resistant aluminum strobe are used, and the frequency can reach up to 15 times per second
Electronic focus: full-time linear and smooth adjustment of focus, clear and adjustable
Beam angle: 2.3°- 32°, full light perception
Pattern angle: 4°-56° full-time linear zoom in and zoom out, 14 times zoom function
Prism effect: double prism disc combination, composed of 8 prisms and 16 prisms, can be rotated in both directions, and prisms can be superimposed.
Power supply quality: Adopt high-tech constant current power supply board, total power 650W, PFC power factor compensation, power can work normally under fluctuating (±30W) environment, all PCB board components are selected first-class brands at home and abroad, AC exclusive voltage supply mode , stable output voltage, long working life, strong anti-interference ability
Power switch: Taiwan three-pin high-quality power switch
Power interface: Taiwan easy-lock, anti-loose and dust-proof interface
Signal interface: equipped with a pair of three-pin male and female interfaces Signal interface: equipped with a pair of three-pin male and female interfaces
Fuse seat: adopt Taiwan high-quality insurance seat, international standard T-type fuse
Signal transmission: automatically identify DMX 512 signal
Heat dissipation parameters: use new high-quality aluminum for heat dissipation, 3 silent fans are installed on the base of the lamp, and 3 silent fans are installed on the lamp bead system, with built-in overheating protection, the fan automatically tracks the temperature, and intelligently adjusts the speed to keep all parts of the lamp at a suitable temperature Work in a temperature environment to prolong the service life of the lamp
Sheet metal design: in accordance with international material standards, integrate independent design strength, and use new high-quality aluminum materials to build
Appearance design: Independent appearance design patent, humanized multi-set module structure, streamlined ABS anti-flame retardant high-temperature engineering plastic and high-strength alloy cold-pressed core material, beautiful and tough.

Protection class: IP20
Lamp body size: 31*26*60cm
Carton size: 35*30*65cm
Net weight of lamp: 15.6 kg
Gross weight of lamps: 17.5 kg

It is buyer who should pay customs duty.
Yes, we will be in accordance with the standards of electrical appliances in your country, to send you to meet the requirements of the plug, EU Plug, US plug, AU plug, UK Plug and so on.
So sorry to hear that. We guarantee you will be 100% satisfied with the quality of your product. If you're unhappy with it, please contact our Customer Service who will be glad to help. When contacting Customer Service Team, please give your order number, a short description and a photo of the problem, so we can prevent these problems in the future.
We declare it LED Lighting with lower price to help you pay less tax by default.
We have one-year warranty in China, if you do not take the LED Lighting APART.
