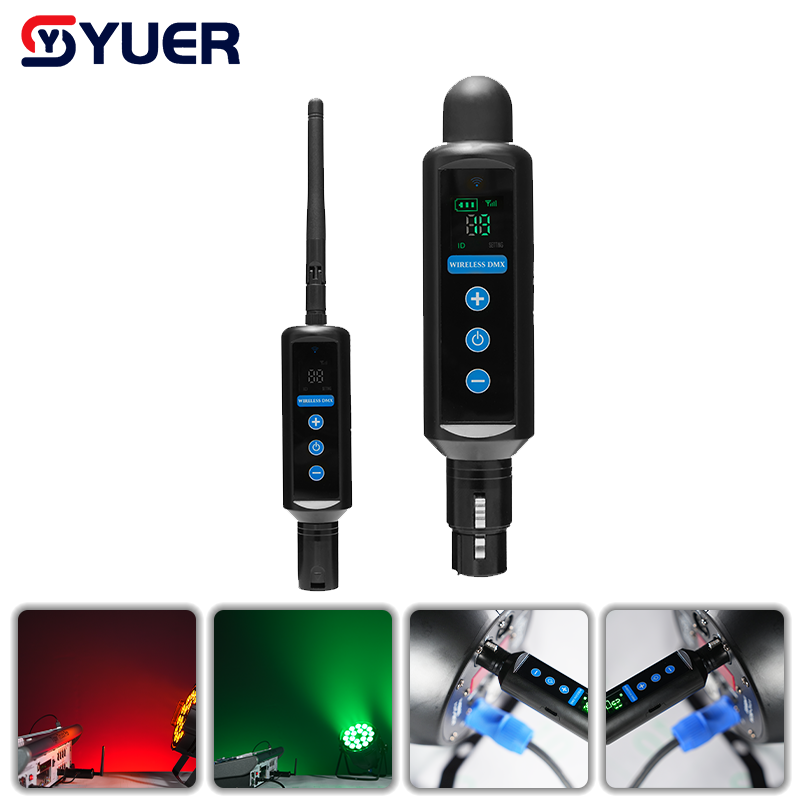

YUER™ New Super 2.4G Wireless DMX512 Transmitter Display Detachable Antenna + Super 2.4G Wireless DMX512 Receiver Battery Power Display For DJ Disco Party Bar Wedding Stage Lighting

Technical Parameters：

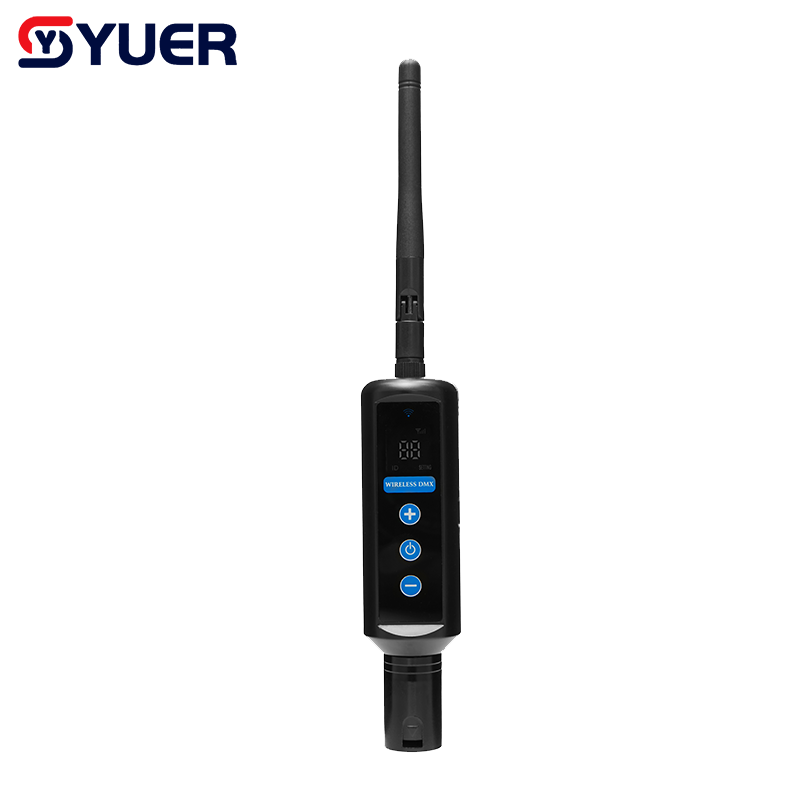

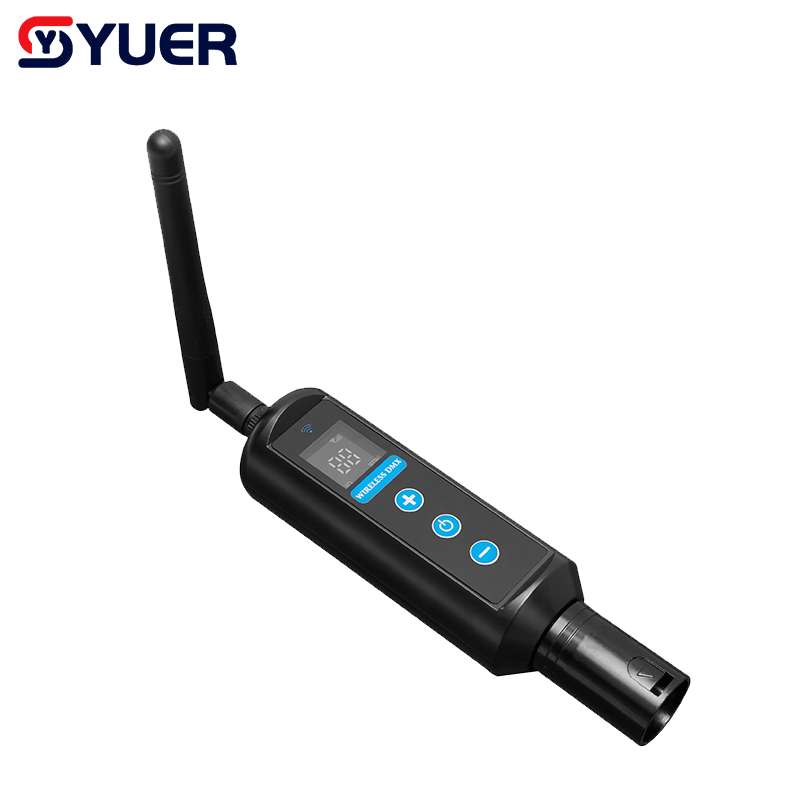

Transmitter：

Input Voltage: 5V 1A
Power Input: 5VDC, ±5%
Power Consumption: 5W
Communication Distance: 600 meters
Operating Frequency Band: 2.400-2.4835GHz, ISM, 126 bands
Modulation Method: GFSK
Maximum Transmit Power: 23dBm
Receiver Sensitivity: -94dBm
DMX Signal Interface: RS485
Reliability: Automatic Restart Timer: Built-in Watchdog Timer (WDT)
System Information: CPU: 32-bit ARM core
Operating Temperature: -40 ~ 85 °C, 5 ~ 95% RH Humidity
Storage Temperature: -65 ~ 150 °C, 5 ~ 95% RH Humidity

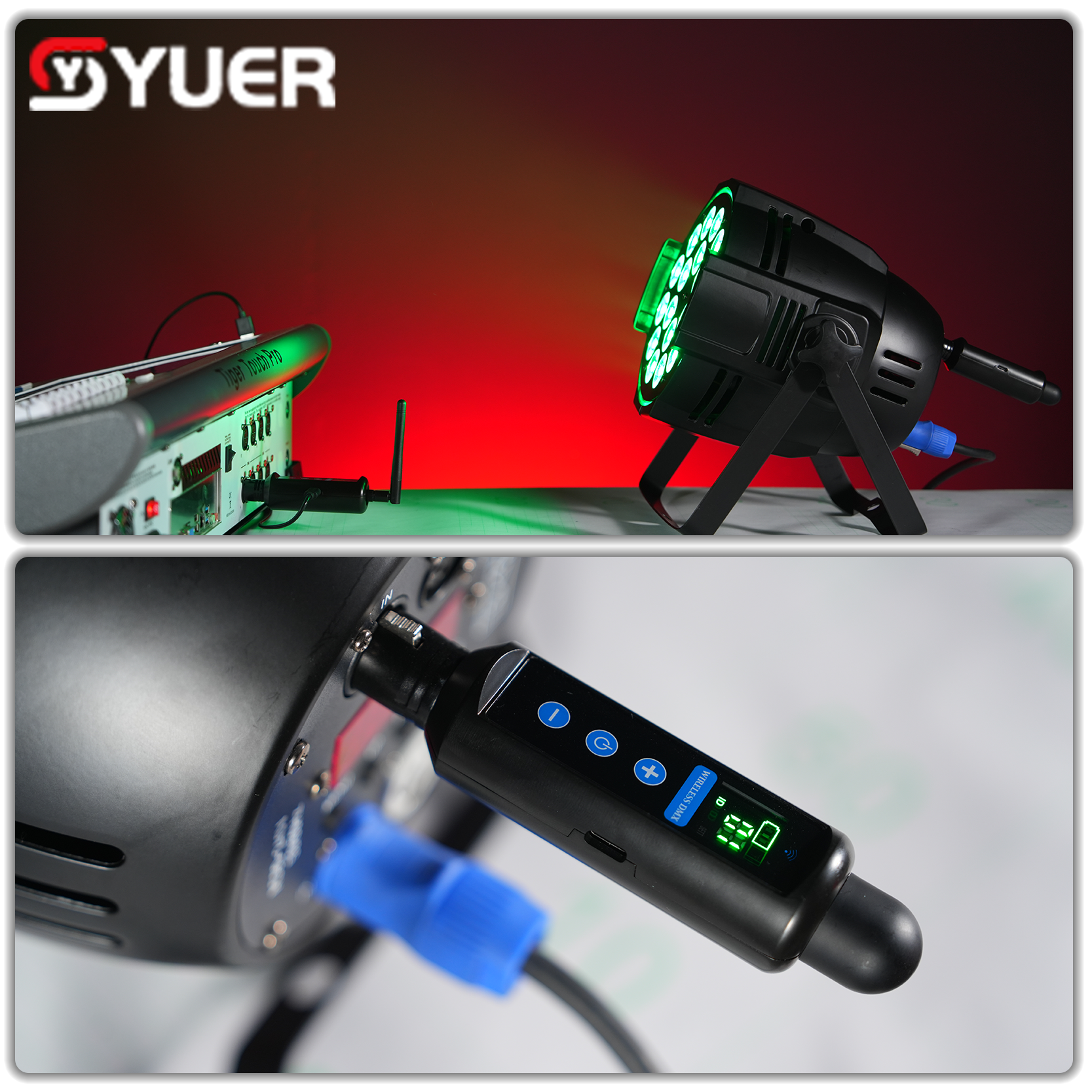

Control Method: Controlled by DMX512 console. Transmitter connected to DMX console, receiver connected to light fixture
Lifespan: 10 years

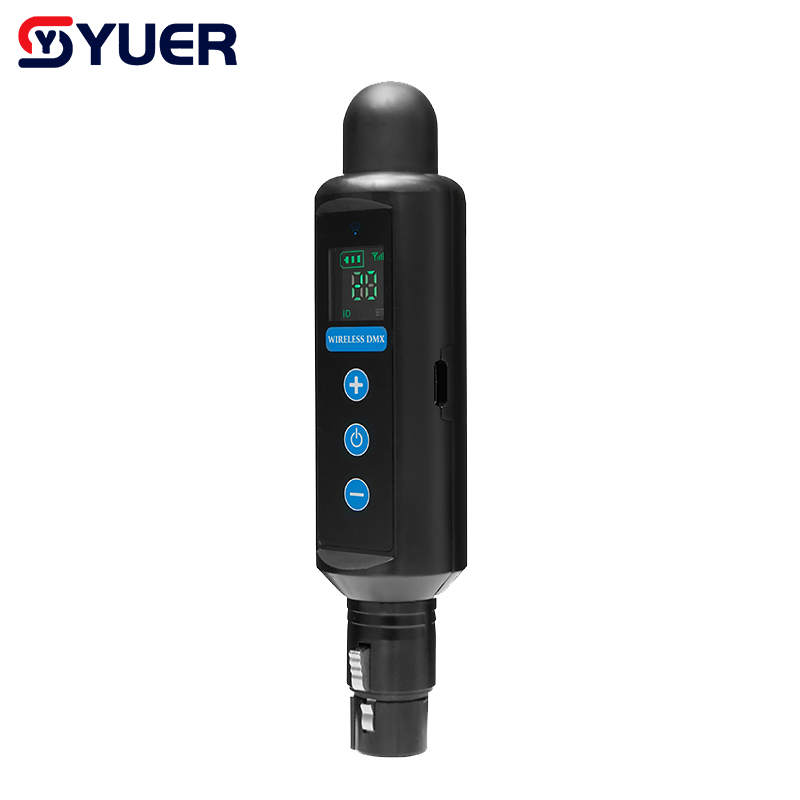

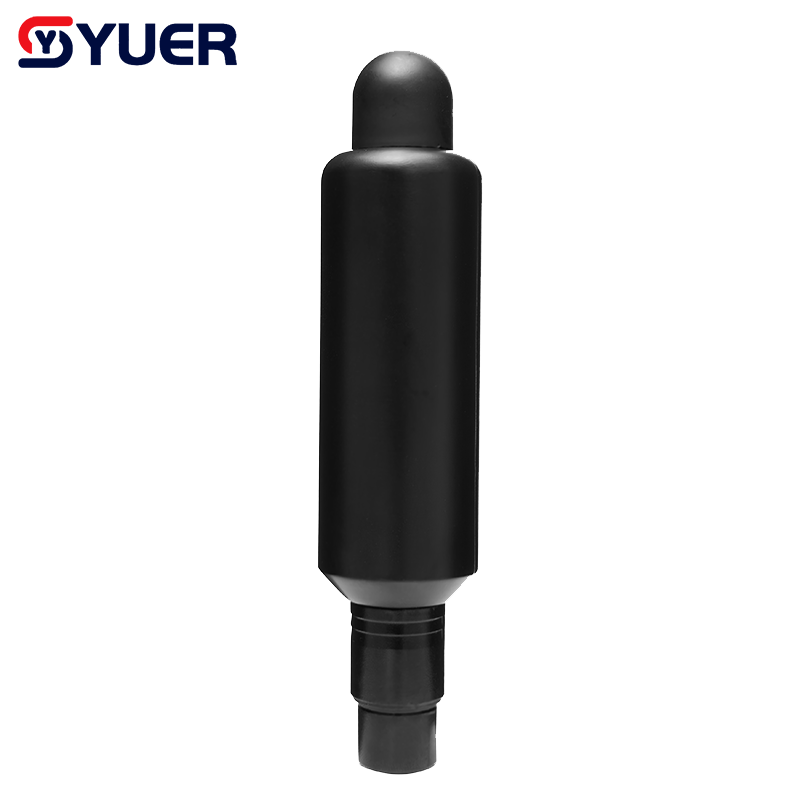

Receiver：

Input Voltage: 5V 1A
Power Input: 5VDC, ±5%
Power Consumption: 5W
Communication Distance: 600 meters
Operating Frequency Band: 2.400-2.4835GHz, ISM, 126 bands
Modulation Method: GFSK
Maximum Transmit Power: 23dBm
Battery Capacity: 750 mA
Charging Time: 3 hours
Usage Time: 20 hours
Receiver Sensitivity: -94dBm
DMX Signal Interface: RS485
Reliability: Automatic Restart Timer: Built-in Watchdog Timer (WDT)
System Information: CPU: 32-bit ARM core
Operating Temperature: -40 ~ 85 °C, 5 ~ 95% RH
Storage Temperature: -65 ~ 150 °C, 5 ~ 95% RH
Control Method: Controlled by DMX512 console. Transmitter connected to DMX console, receiver connected to light fixture
Lifespan: 10 years
