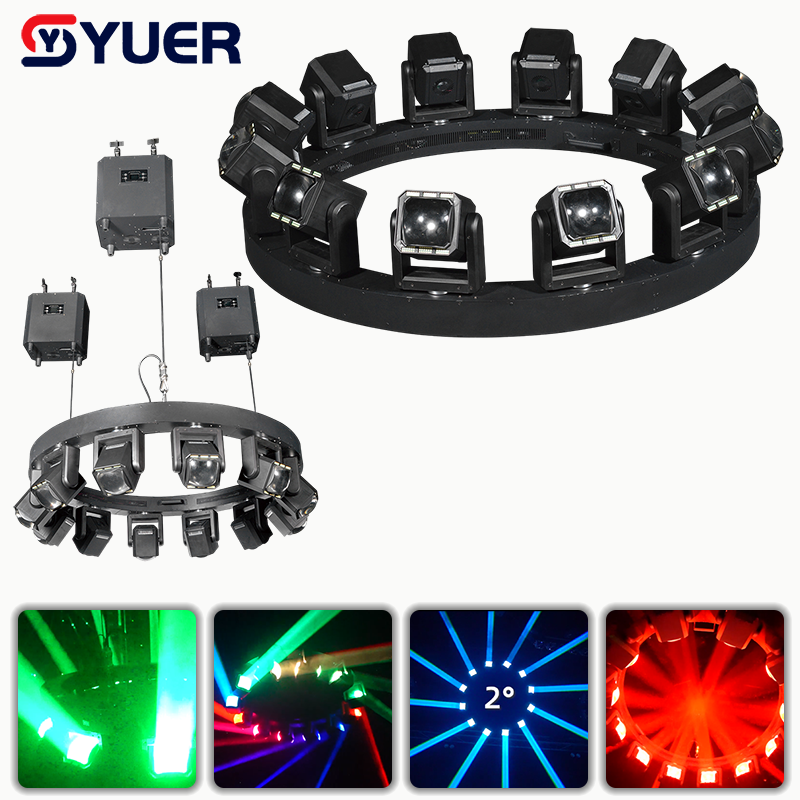

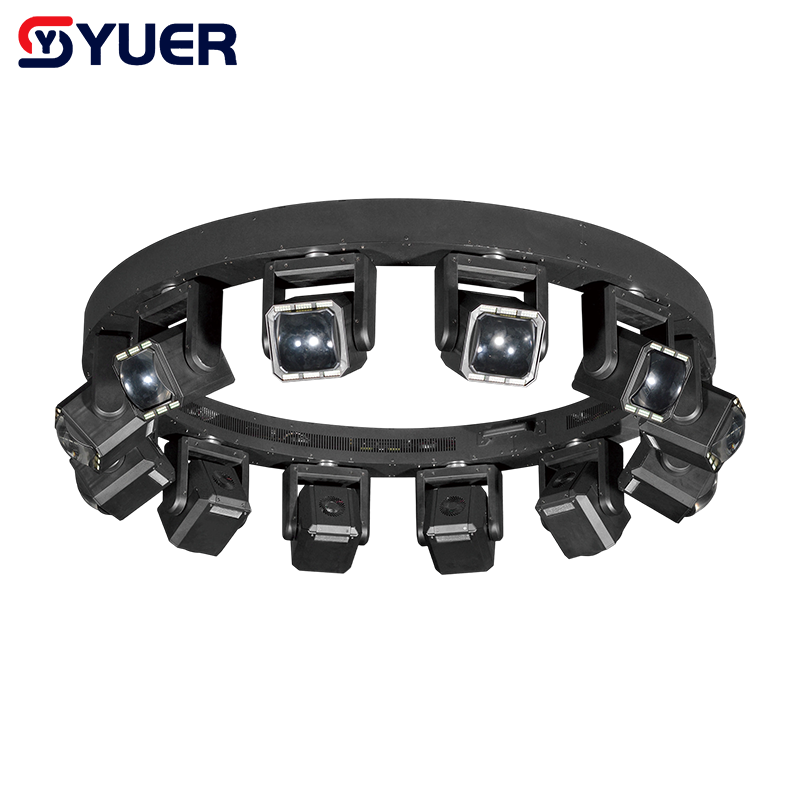

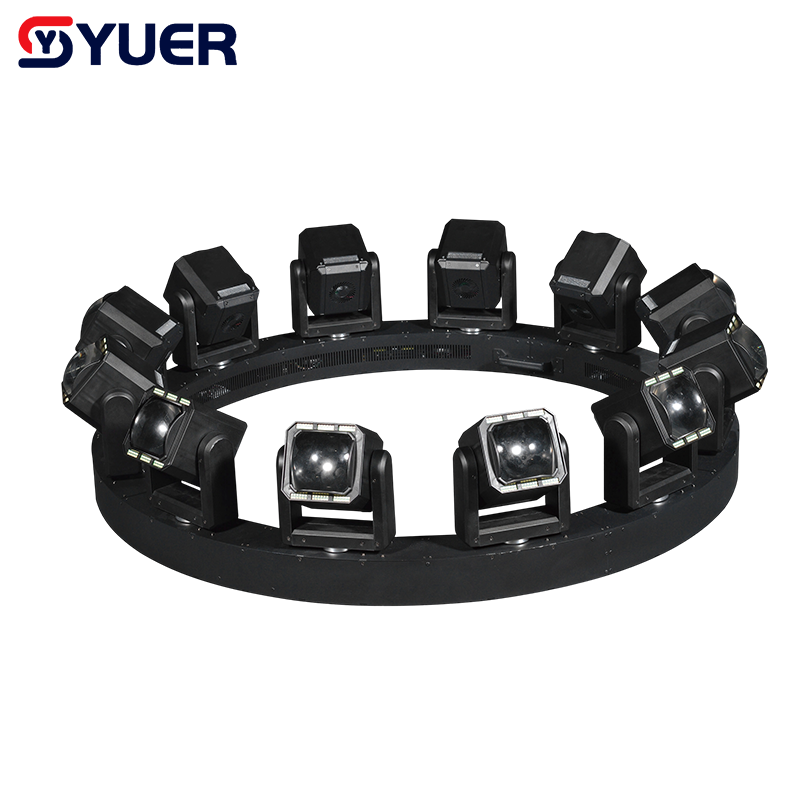

YUER™️LED 12X80W RGBW 4IN1 Infinite Lifting Ring Moving Head Beam Light With 432X3W Warm White+432X3W White Strobe Effect RDM DMX512 For Dj Disco Party Wedding
2
sold in last
8
hours
customers are viewing this product
Technical parameters：
Beam light source: 12×8
0W RGBW LEDs
Auxiliary light source: 432×3W warm light LEDs, 432×3W white LEDs
Light source life: 20,000 hours
Optical system
Beam angle: 2°
control
4 Touch buttons
Control Panel: LCD Display
Control protocol: DMX512, RDM
Independent address code control of lamps and lifters
Lamp DMX channel mode: 3 types
Lamp control channel: 22/90/130CH
Lift control channel: 4CH
X-axis/Y-axis
X-axis operation angle: 360°
Y-axis operation angle: 360°
Automatic correction of X-axis/Y-axis position loss
X-axis/Y-axis: 16-bit precision scan
Lamp specifications

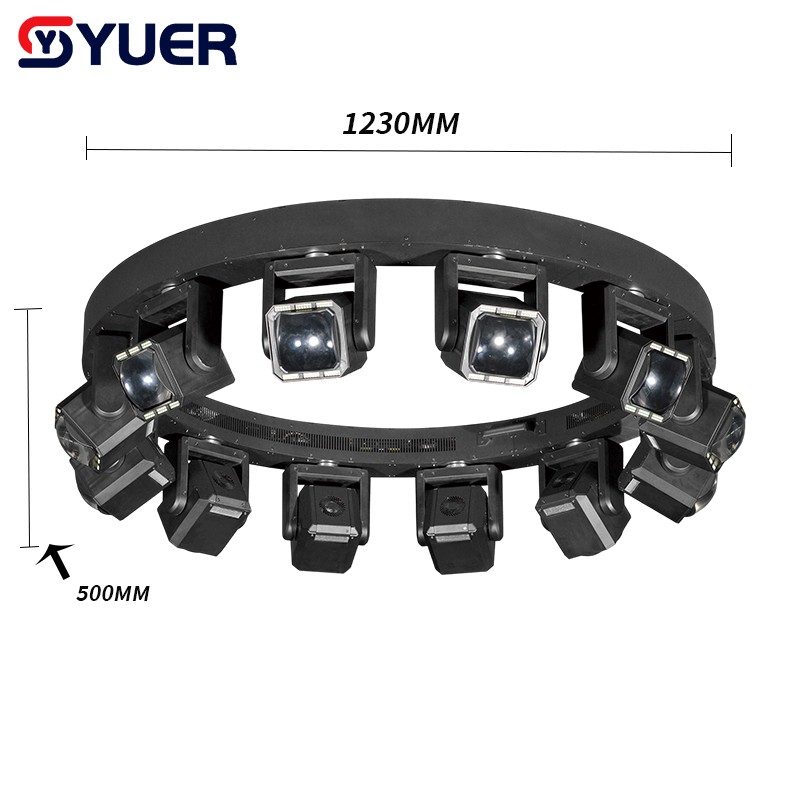

Lamp size: outer diameter 1200mm, inner diameter 1000mm, height 313mm
Net weight: 39.5kg
Lift size: 321mm long, 251mm wide, 324mm high
Net weight: 20kg

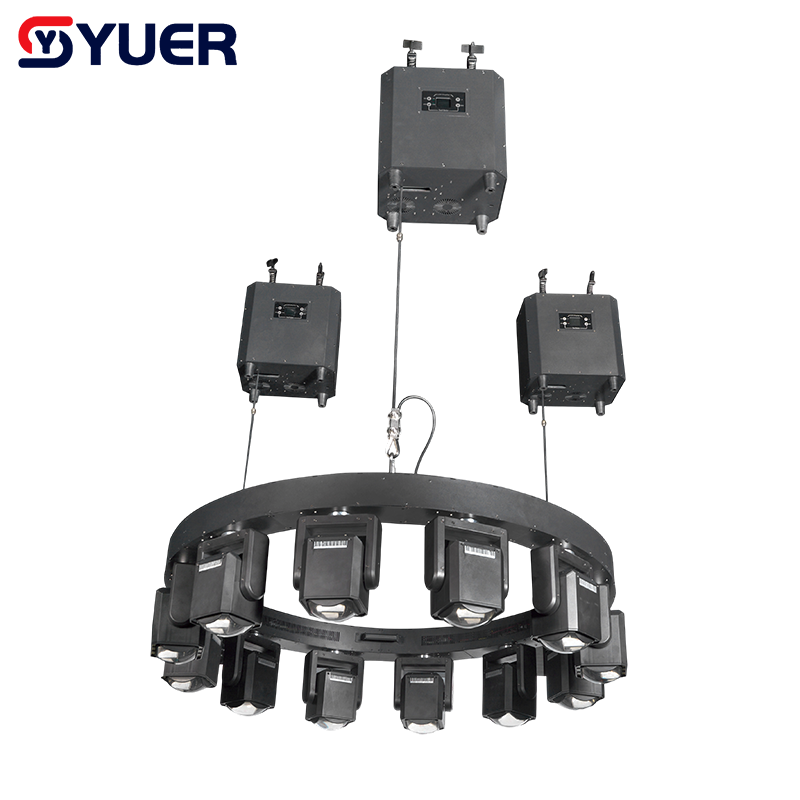

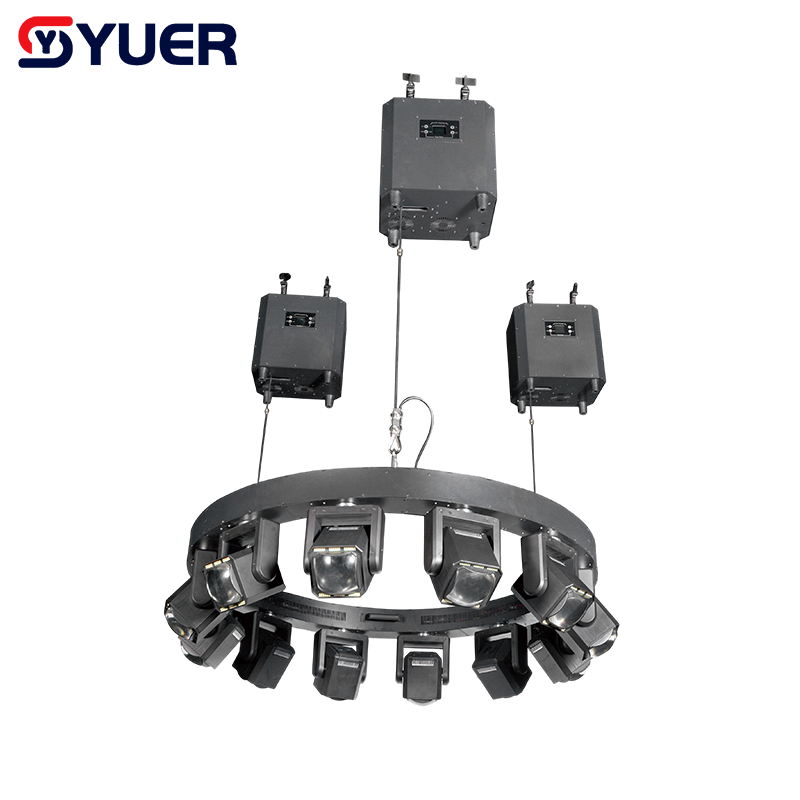

Adaptive lifting system information
Lift: 3
Lifting stroke: 6m
Lifting speed: 0.5m/s
Single machine load: 10kg
Control protocol: DMX512
Control channel: 4CH
Control panel: LCD display, 4 touch buttons
Safety guarantee: physical braking, electronic protection
Electrical and Interface
Input voltage: AC100-240V, 50/60Hz
Beam ring lamp power: 800W
Lift power: 3×400W
Power socket: Power connector input/output
Signal input/output: 3-core/5-core canthon socket
Working environment
Maximum ambient temperature: 40°C
Minimum operating temperature: 0°C
Protection level: IP20
Install
Equilateral distance vertical hoisting
Install the lifting system according to standard equilateral dimensions
Used with lift
Safety buckle connection hole
Factory configuration
manual
Power cord
Signal line
Split folding lamp hook
Ring Packaging Size: 123X123X50CM
Ring gross weight: 75KG
Lift packaging size: 90X40X52
Gross lift weight: 89KG
User’s manual:LED 12X80W RGBW 4IN1 Infinite Lifting Ring Moving Head Beam Light
