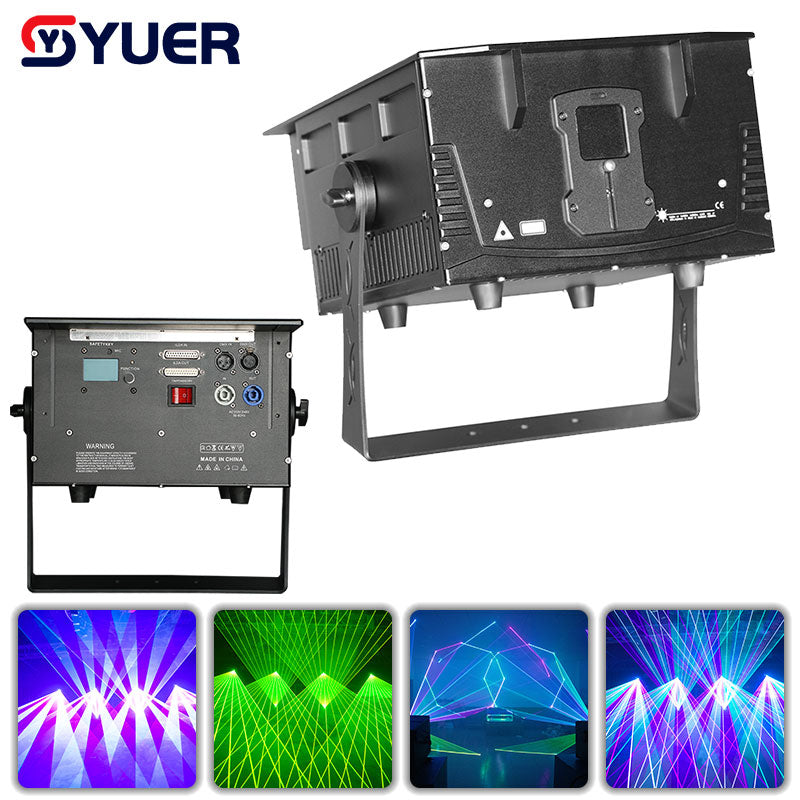

YUER™️ Waterproof 10W 15W 20W RGB Laser Light ILDA DMX Animation Beam Scanner Stage 35Kpps 3D Laser Projector Dj Disco Party Christmas
2
sold in last
8
hours
customers are viewing this product
Product Details：
★: Power input: AC: 110V-250V-50/60hz
★: Power consumption of the whole machine: 600W
★: Laser chip brand: Japan Nichia
★: Laser service life: ≥10000 hours
★: Laser level: Class
★: Laser power: 20W (red: 6W green 6W blue 8W)
★: Laser power: red 6W, optical scanning angle: +/-30 degrees = 60 degrees High-quality dielectric film reflectivity >98%
★: Wavelength 400nm-700nm (RGB system applicable)
★: Input control signal: ± 5V (position signal)
★: Warranty period: 24 months (non-human factors)
★: Laser emission angle: <1.6mrad (full angle)
★: Laser spot size: <6.5mm
★: Modulation mode: 0~5V analog, up to >100KHz/TTL analog modulation
★: Scanning speed: 35Kpps galvanometer
★: Support input signal resolution bandwidth: up to 165 MHz
★: Aspect ratio: Any ratio, the aspect ratio can be adjusted according to the characteristics of the picture and the carrier. Imaging mode Linear 3D/2D pattern and animation (with software) Playback angle Max60°
★: Outdoor temperature use: -50-50° (built-in thermostat, automatic temperature adjustment) Safety standards Follow IEC60825 standard safety items Lightning protection, overcurrent and overvoltage protection, leakage protection, moisture-proof Anti-interference optical path sealing Three-layer structure, the optical path layer is completely sealed Dustproof and waterproof level (IP level) IP58 Working humidity <95%
★: Control mode: automatic/DMX512 control/master-slave synchronization, ILDA interface (can be connected to imported pangolin pangolin laser special software)
★: DMX control function: 15-channel control, with black field function, computer interface, compatible with ILDA standard computer laser show.
★: Software control: ILDA's full signal is converted by electronic switch

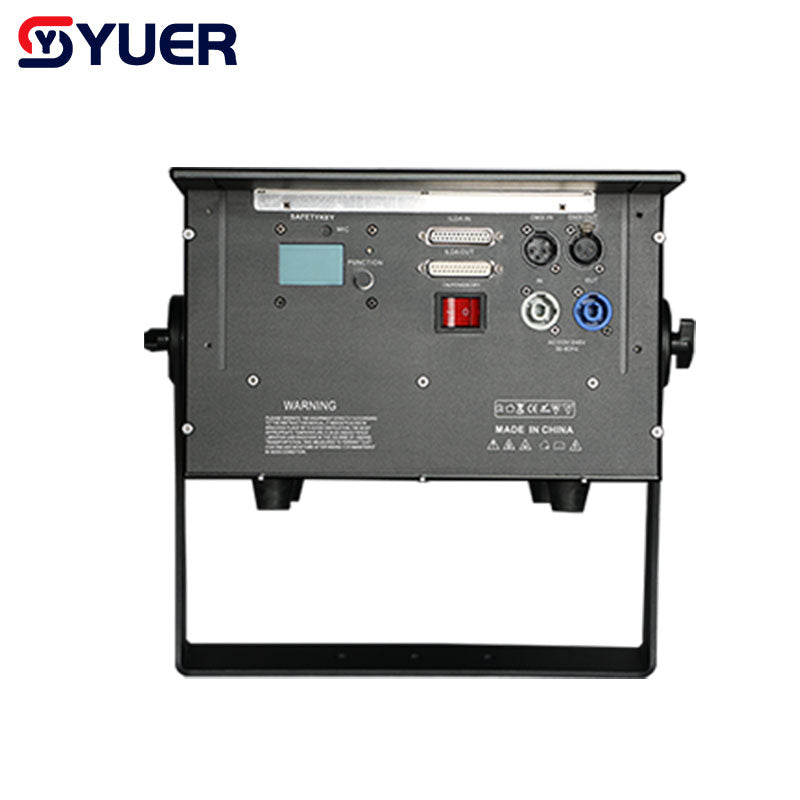

Input and output interface: international unified standard DB-25 input and output
★: Cooling method: air cooling Structure: three-layer structure, the middle layer is 60mm plug-in Heat dissipation layer laser temperature control: TEC dual temperature control
★: Net weight: 17KG
★: Air box size: 49X41.5X39.5CM
★: Air box gross weight: 28KG
It is buyer who should pay customs duty.
LED Lighting use of the plug and voltage, is consistent with the normal use of my country standards?
Yes, we will be in accordance with the standards of electrical appliances in your country, to send you to meet the requirements of the plug, EU Plug, US plug, AU plug, UK Plug and so on.
So sorry to hear that. We guarantee you will be 100% satisfied with the quality of your product. If you're unhappy with it, please contact our Customer Service who will be glad to help.
When contacting Customer Service Team, please give your order number, a short description and a photo of the problem, so we can prevent these problems in the future.
We declare it LED Lighting with lower price to help you pay less tax by default.
We have one-year warranty in China, if you do not take the LED Lighting APART.
