Technical Parameters：

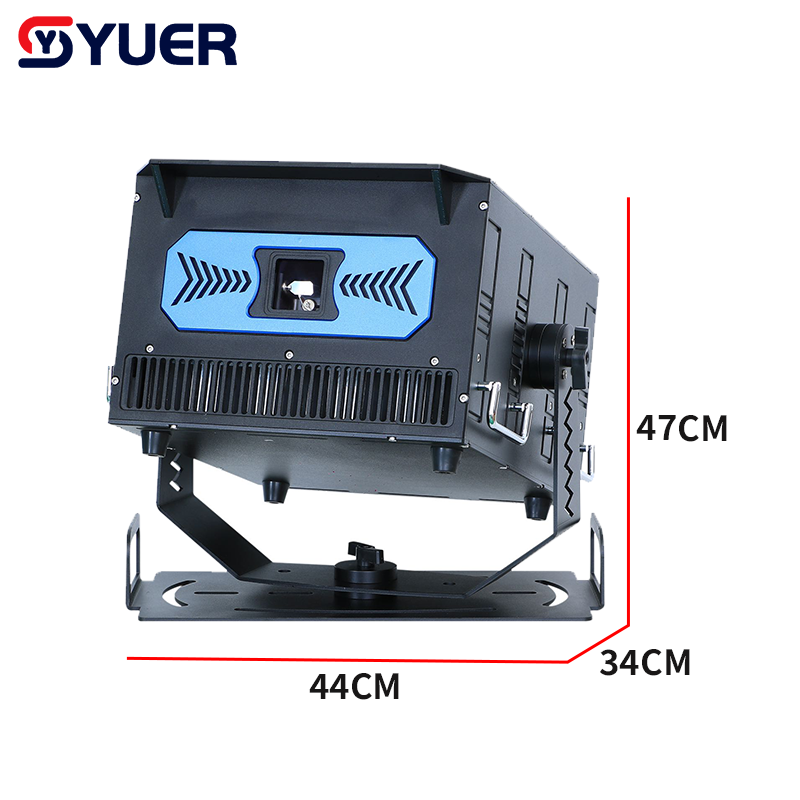

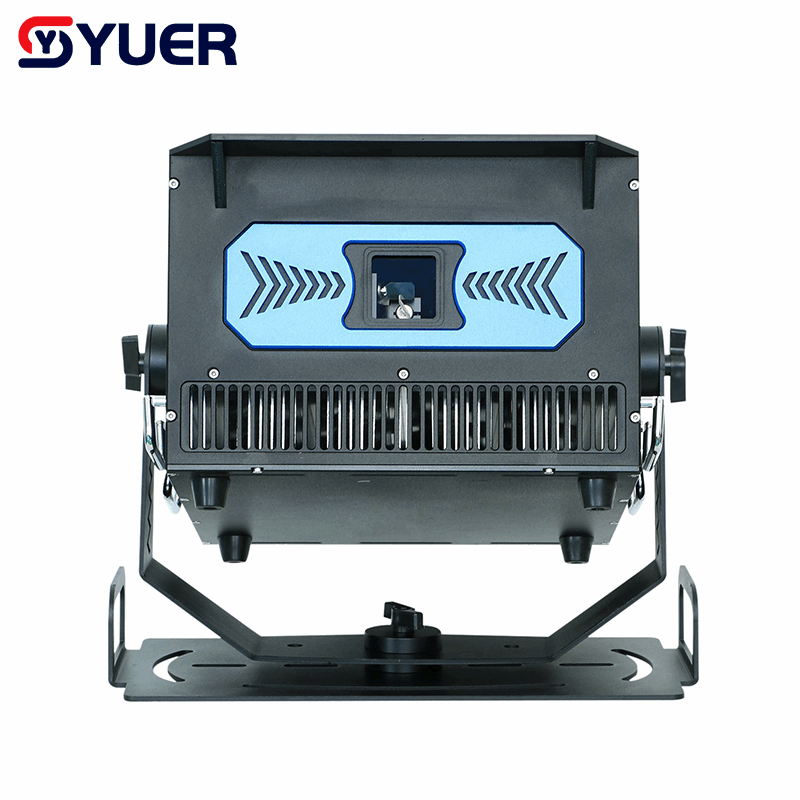

Chassis Dimensions: 44*47*34CM Weight: 40KG
Flight Case Dimensions: 64*48*52CM Weight: 54KG
Laser Parameters:
30W (Red: 8W, Green: 8W, Blue: 14W)
40W (Red: 10W, Green: 12W, Blue: 18W)
50W (Red: 12W, Green: 15W, Blue: 23W)
60W (Red: 15W, Green: 17W, Blue: 28W)
Power Input: AC: 110V-250V-50/60hz
Total Power Consumption: 600W
Laser Chip Brand: Nichia (Japan)
Laser Lifespan: ≥10,000 hours
Laser Class: Class IV
Optical Scanning Angle: +/-30 degrees = 60 degrees
High-Quality Dielectric Film Reflectivity >98%
Wavelength: 400nm-700nm (Applicable to RGB systems)
Input control signal: ± 5V (position signal)
Warranty period: 18 months (excluding human factors)
Laser emission angle: <1.6mrad (full angle)
Laser spot size: <6.5mm
Modulation mode: 0~5V analog, up to >100KHz/TTL analog modulation
Scanning speed: 40Kpps
Supported input signal resolution bandwidth: Up to 165 MHz
Aspect ratio: Arbitrary, adjustable according to image characteristics and carrier

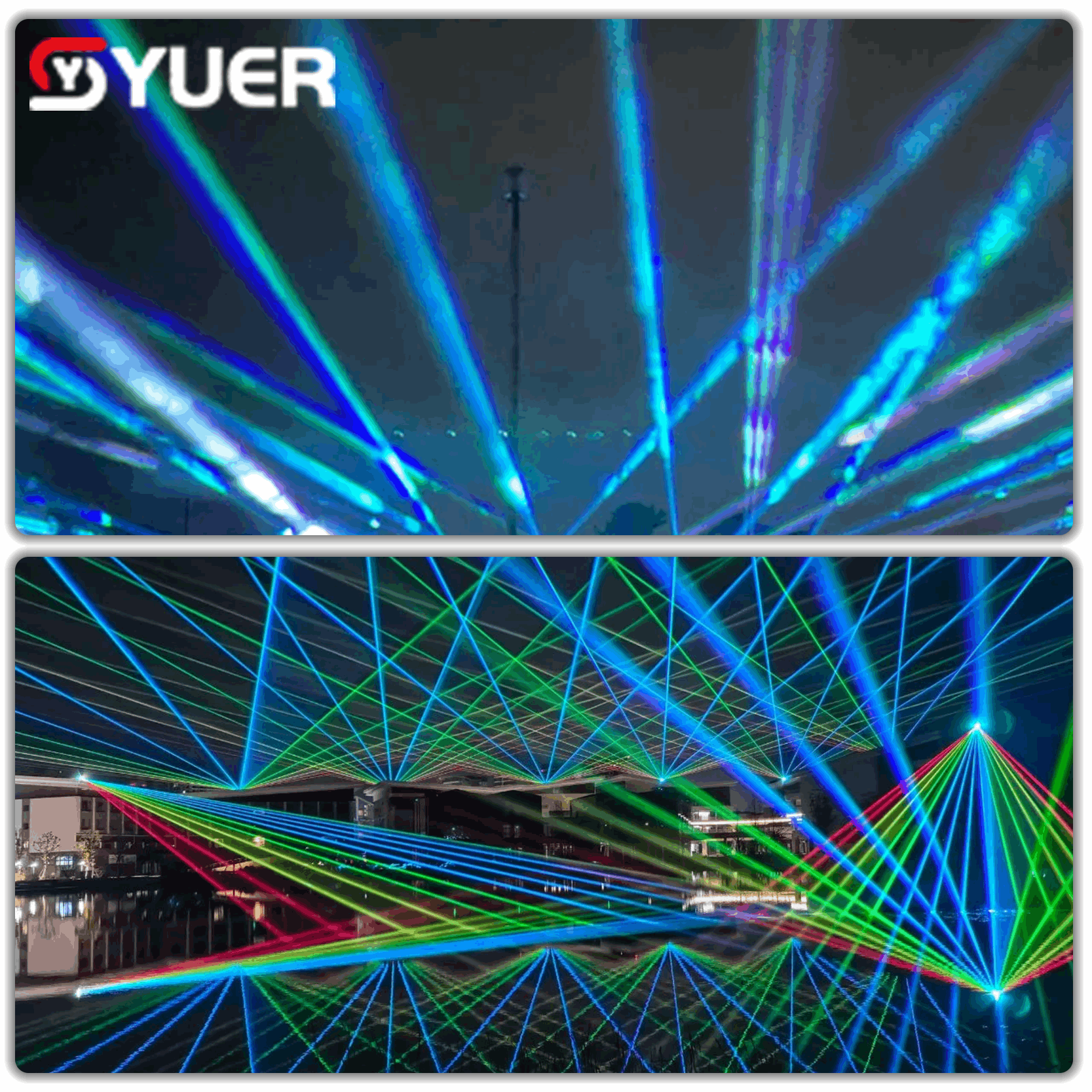

Imaging method: Linear 3D/2D patterns and animations (with software)
Playback angle: Max 60°
Outdoor temperature range: -50-50°C (built-in thermostat, automatic temperature adjustment)
Safety standards: Complies with IEC60825 standards
Safety items: Lightning protection, overcurrent and overvoltage protection, leakage protection, moisture resistance
Anti-interference optical path sealing
Three-layer structure, optical path layer is completely sealed
Dustproof and waterproof rating (IP rating)
IP58 operating humidity <95%
Control Mode: Automatic/DMX512 Control/Master-Slave Synchronization, ILDA Interface (connectable to imported Pangolin laser software)
DMX Control Functions: 15-channel control, with black screen function, computer interface, compatible with ILDA standard computer laser performance.
Software Control: ILDA uses electronic switching for all signals.

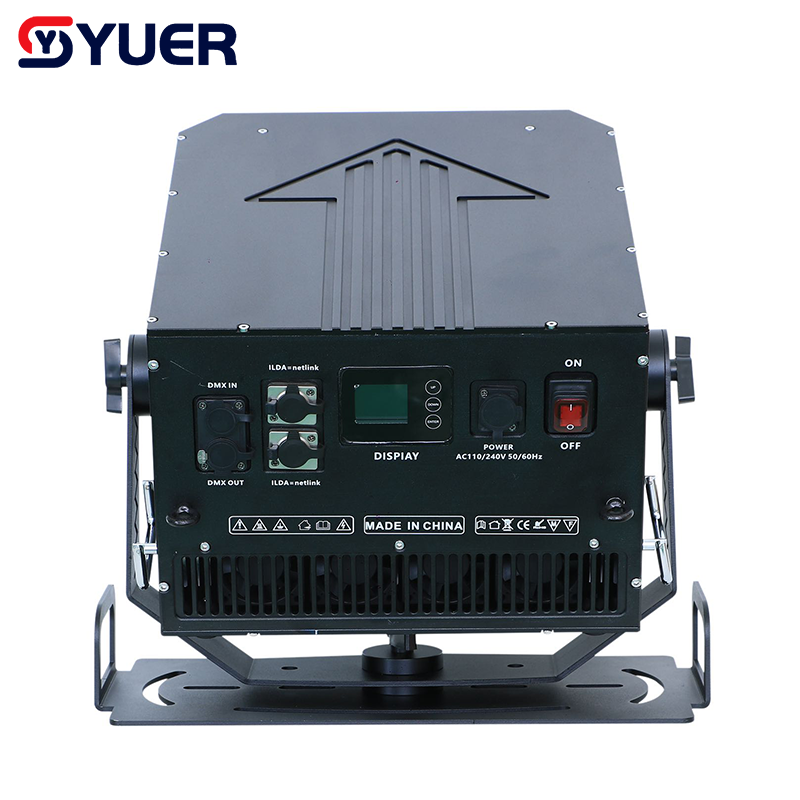

Input/Output Interface: Internationally standardized DB-25 input/output.
Cooling Method: Air-cooled.
Structure: Three-layer structure, with a 60mm insert-type heat sink in the middle layer.
Laser Temperature Control: TEC dual temperature control.
