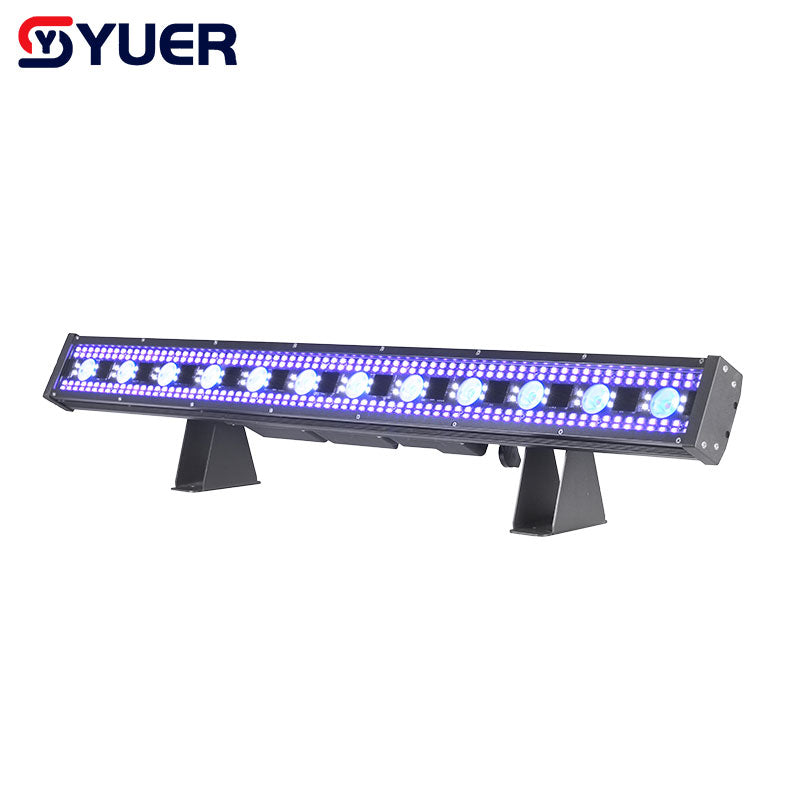

Product Description:
Light source: 12X8W RGBS four in one LED beads in the middle+48X1W white light beads; There are a total of 288X1W RGBA four in one light beads on both sides;
Lamp bead color: RGBS four in one+W+RGBA four in one lamp bead
● Lamp bead lifespan: ≥ 50000 hours
● Constant power of the whole machine: 205W ± 5%
Input voltage: AC100-240V, 50-60Hz
Working temperature: -10 ℃ to 45 ℃
● Strobe power: 350W, power factor PF ≥ 0.95;
● Standby power: 9W; PowerCon input/output;
● Shell color: Black
Optical system: The angle of the outgoing light beam is 20 °
Waterproof rating: IP65
Control mode: Standard DMX512 protocol
Control channel: 22/29/37/156CH
● Display screen: TFT 1.8-inch color display screen; Chinese and English can be switched freely, and the font can be reversed 180 ° for display

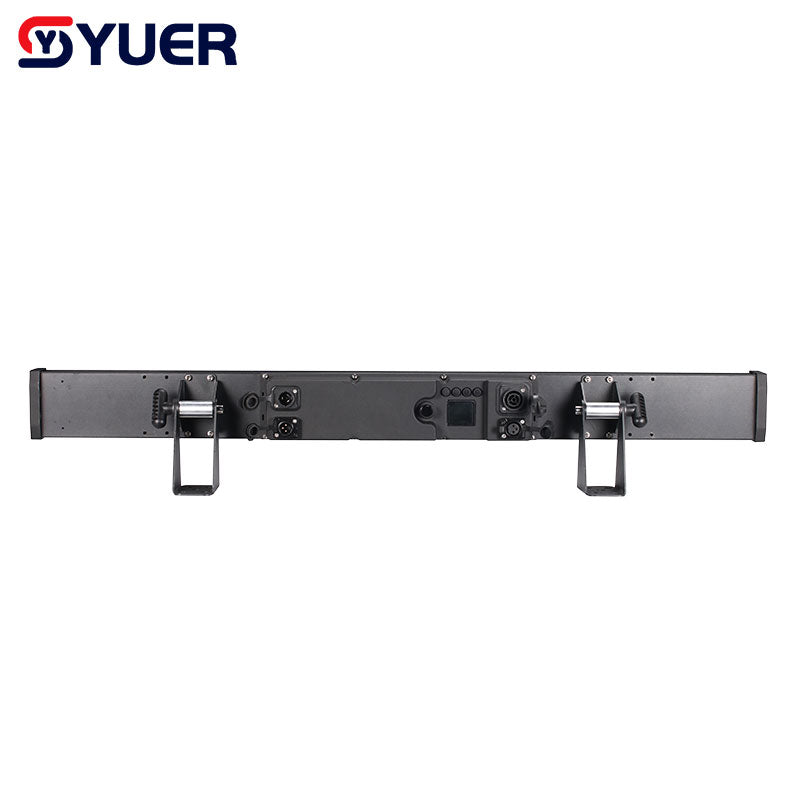

● DMX signal connection: Three core XLR input/output
● Online quantity: 10 units (240V, 50Hz) with 1.5mm ² power cord
5 units (100V, 60Hz) 1.5mm ² power cords
Electric control technology: 0-100% dimming; Constant current drive mode; Temperature sensing detection, intelligent adjustment of light source power; Lamp information inquiry;
● Safety protection: overcurrent, overvoltage, overheating protection

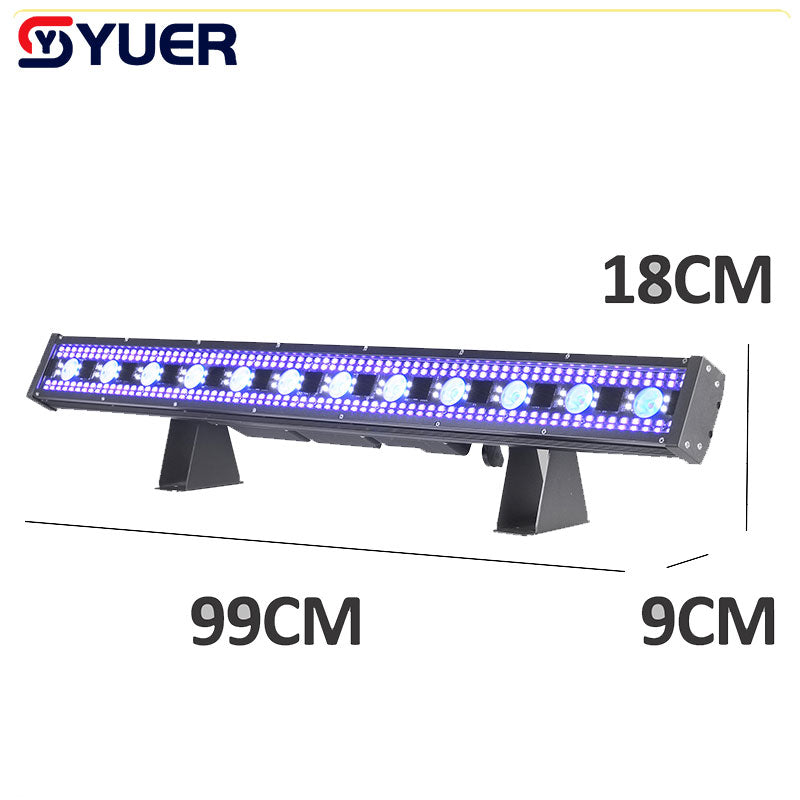

Product size: 999.6X95X188mm
Net weight: 5.7kg
● Carton packaging: Outer box 108X33X37.5cm, (one pack of four) Gross weight: * kg
● Aviation box packaging: 106X63X53cm (1 pack of 8) Gross weight: 90.2kg

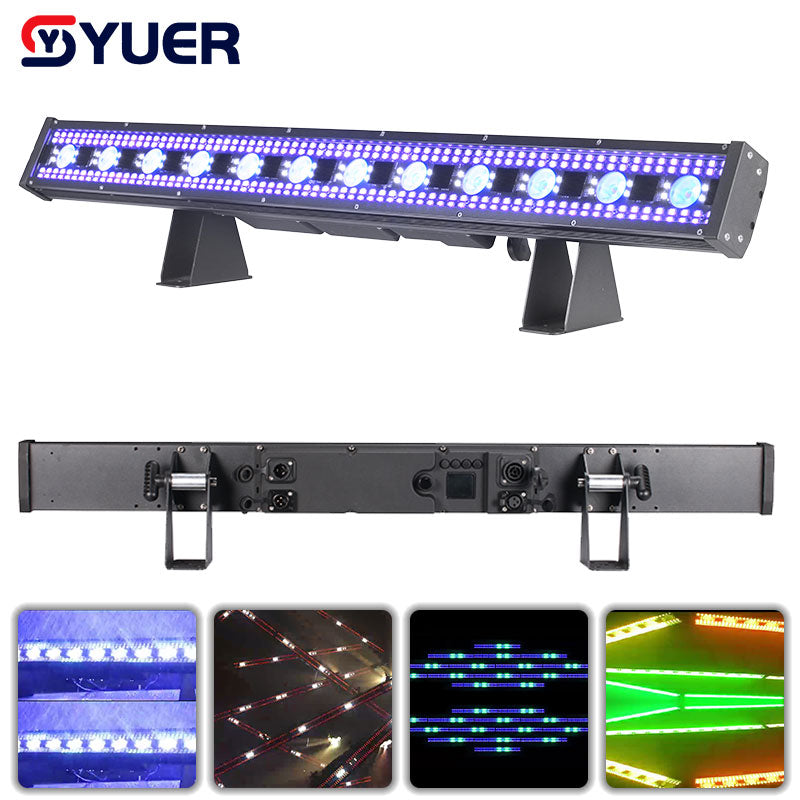

● Effect configuration: Full range dimming, 256 level dimming accuracy; Fast strobe frequency of 1-25Hz; Single point control of 8W LED beads in the middle, 12 segment control of white light, and 24 segment control of both sides; Integrating dyeing, beam, and strobe effects; Pre set multiple macro functions for various effects
