Technical Parameters：
Input Voltage: AC110V-240V/50-60HZ
Power Consumption: 460W
Light Source Lifespan: 50,000 hours
Light Source Specifications: Imported brand new 400W LED module engine
Color Temperature: 8000K, Color Rendering Index >95
Dimming System: 0-100% linear adjustment
Focusing System: 4m to 50m linear adjustment
Atomization: 1 independent atomizing filter, soft and natural light spot
Light Spot Zoom Angle: 4-35 degrees
Color Angle: 10-50 degrees
High-Speed Strobe: 0-30 times/second
Adjustable strobe effect. Strobe macro function.
Control and Programming
Channel Mode: 23/21 channels
Display Method: LCD display, button + touch dual operation mode
Control Signal: International standard DMX512
Equipped with RDM function, online software upgrade, address code dialing
Color: 8 colors + white light.
Color Halftone Function
Color Mixing System: Linear CMY+CTO color mixing system
Fixed Patterns: 12 fixed patterns + white light
Rotating Patterns: 7 glass patterns, each capable of independent forward and reverse rotation
Prism System: Standard configuration includes single 6-prism and 8-prism, each capable of independent forward and reverse rotation
Macro Functions: Control console reset function, auto-run mode, master-slave mode
Horizontal Scan: 540 degrees (16-bit precision scan) with electronic error correction
Vertical Scan: 270 degrees (16-bit precision scan) with electronic error correction
Cooling Method: Axial fan for enhanced heat dissipation
Safety Devices: Electronic temperature control overheat protection; automatic power-off protection in case of system failure due to overheating
Material: High-temperature resistant plastic
Operating Environment: -20°C to 40°C
Protection Rating: IP20

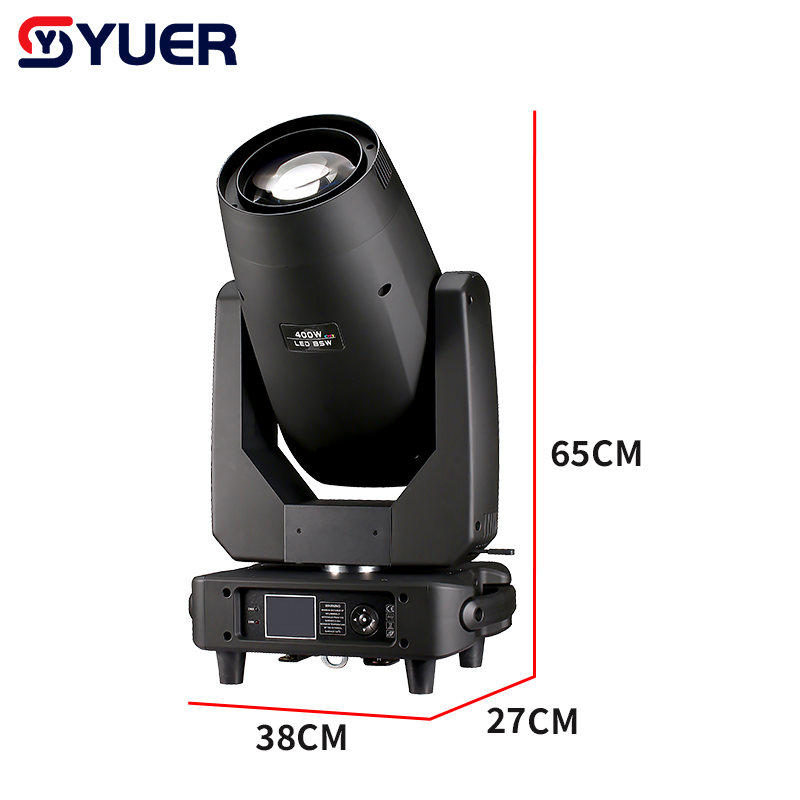

Weight and Dimensions
Net Weight: 26 kg
Gross Weight: 28 kg
Packaging Dimensions: 63*54*47 cm
