Technical Parameters：
Light Source: Main LEDs: 7 60W RGBW LEDs; Auxiliary LEDs: 132 0.12W integrated IC multi-color LEDs, arranged in 12 strips of 11 LEDs each.
Lifespan: 20,000 hours
Optics: High-efficiency, focused, heat-resistant glass light guide + integrated, high-transmittance acrylic lens
Zoom Angle: 4-52°
Effect System
1. Main LEDs: 7 LEDs can be controlled as a group or individually.
2. Auxiliary LEDs: Each of the 6 main LEDs has two rows of multi-color LEDs next to it, allowing for various flowing water effects.
3. Motorized Zoom: The beam spot can be zoomed in and out, with the beam angle linearly varying from 4° to 52°.
4. Infinite Color Mixing: 16-bit continuous RGB color mixing allows for combined or individual control of the beam and halo colors, depending on the DMX mode. An unlimited number of colors can be created to meet your diverse color requirements.
5. Virtual Color Wheel: The virtual color wheel includes 48 preset colors, including a variety of popular colors. During normal operation, the virtual color wheel overlays the colors mixed by the RGB color mixing channels. When using the device's various pre-programmed effect macros, the virtual color wheel allows you to select a background color while using the RGB color mixing channels to set the foreground color.
6. Color Temperature Control: A dedicated CTC channel allows for smooth and continuous adjustment of the fixture's color temperature to any point between 1000K and 12850K.
7. Strobe: 1-20Hz fast strobe, with pulsed and synchronous/asynchronous strobe effects.
8. Dimming: 0-100% smooth dimming.
Motion Parameters
Pan/Tilt: 540° horizontal scan angle, 270° vertical scan angle, automatic position correction, and 16-bit precision fine-tuning. Cooling System
Waterproof, silent axial fan, high-efficiency, integrated die-cast aluminum heat sink
Power Supply
Input Voltage: AC100-240V 50/60Hz
Rated Power: 350W
Lamp Specifications:

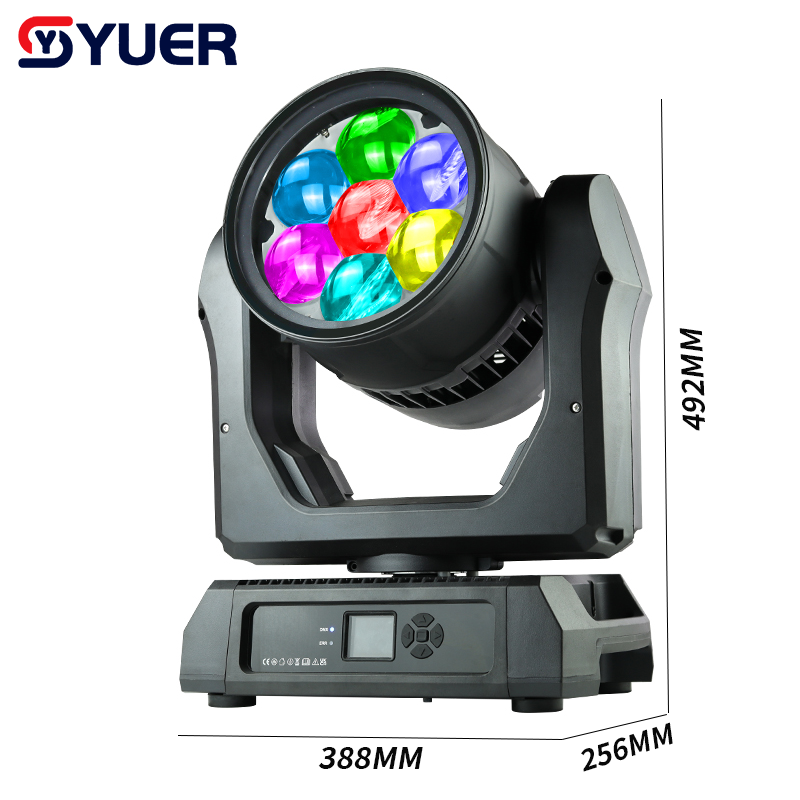

Dimensions: 388x256x492mm
Weight: 15.3KG
IP Rating: IP65
Operating Environment: -10°C to 40°C
Packaging Dimensions: 56cm*37cm*47cm
Gross Weight: 18.5KG
