YUER™️ Mini 600W LED Cutting Moving Head Light CMY CTO With Aperture Beam Spot Zoom Wash 3in1 DMX512 For Stage Light Effect Light Disco Dj Music Party Bar

Technical Specification:

Input voltage: AC100-240V, 50/60Hz
● Rated power: 600W
● Light source: LED module
● LED life: 30,000 hours
● Color temperature: 7200K
● Color rendering index: standard mode Ra>75, high rendering mode Ra>90
● Luminous flux: 24000LM
● Power interface: 16A power plug
● Signal interface: three-core XLR socket
● Control mode: DMX512, RDM LED600W mini cutting light + lED aperture (8-piece cutting full-function type)
● Channel mode: 36 international standard DMX512 channels
● Display system: 2.5-inch touch LCD display, Chinese and English display, 180-degree rotation
● Fixed color: 9 colors + white light
● Color mixing system: independent CMY color mixing system
● Color temperature adjustment: independent CTO2800-6000K linear adjustment
●Prism plate: Rotate 1 octagonal prism
●Effect plate: Super cool simulation of dynamic flames, gurgling water and other dynamic effects
●Fixed pattern: 9 fixed pattern pieces + white circle
●Rotating pattern: 5 pattern pieces (pluggable) with outer diameter of 27.9mm, effective diameter of 16.5mm, thickness of 1.1mm
●Cutting system: 8 independent cutting pieces, each piece can be closed separately,
●Atomization system: 0~100% linear atomization
●Aperture system: 5%~100% smooth adjustment
●Four-in-one optical lens design: (BEAM beam mode): 2°~6°; (SPOT pattern mode): 10°~48°; (WASH dyeing mode): 0°~52° Four modes can be switched arbitrarily to realize the four-in-one functions of beam, dyeing, pattern and cutting.
●Dimming system: 0-100% linear adjustment
●Strobe system: The frequency can reach up to 25Hz, and random strobe and pulse strobe can be selected
●Horizontal scan: 540° (16 bit precision scan)
●Vertical scan: 270° (16 bit precision scan)
●Protection level: IP20
●Working environment: 0-45℃
●Net weight: 16.2kg

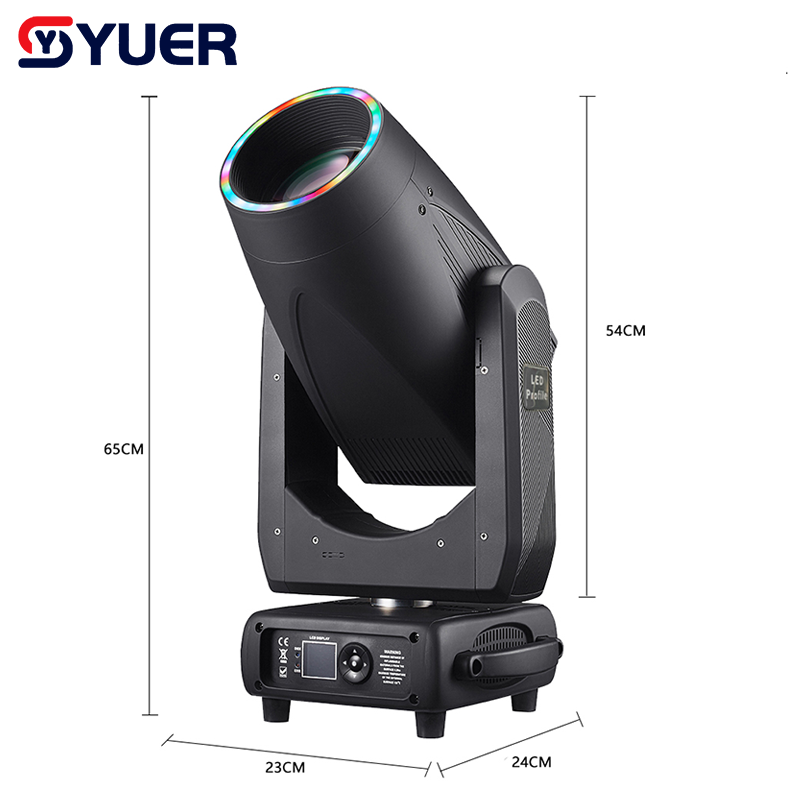

Product size: 23*24*65cm (bare light)
Carton packaging: 60.5*53.5*46.5cm
Gross weight: 18kg

User’s manual: Mini 600W LED Cutting Moving Head Light CMY CTO With Aperture Beam Spot Zoom Wash 3in1  DMX512
