Product Details：
• Number of DMX512 channels: 2048
• Number of connected luminaires: 200

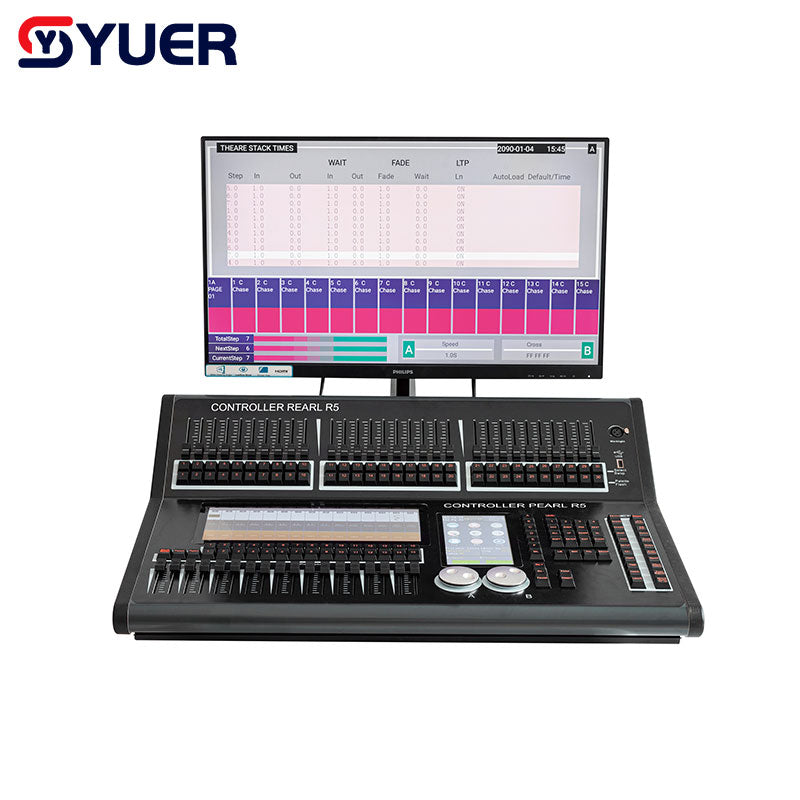

• The built-in 12.1-inch capacitive screen is used for playback page turning and marking, and the 7-inch capacitive screen is the main menu function of the console.
• Scanner reconnection address code: Supported
• Horizontal and vertical swapping of lights: supported
• Light channel inversion output: supported
•Light channel sliding mode switching: supported
• Maximum control channels available per scanner: 40 main channels + 40 fine-tuning channels
• Lamp library: supports Pearl R20 lamp library
• Number of scenes that can be saved: 150
• Number of scenarios that can be run simultaneously: 15
• Total number of steps for multi-step scenes: 600
• Scene timing control: fade in, fade out, LTP slide
• Number of graphics that can be stored per scene: 5
•Fader activated scene and dimming: supported
• Interlocking scenario: supported
• Point control scene: supported
•Graphic generator: can generate Dimmer, P/T, RGB, CMY, Color, Gobo, Iris, Focus graphics
• Number of graphics that can be run simultaneously: 8
•Master Fader: global master control
• Immediate blackout: supported
• Turntable to adjust channel value: Supported
• Fader adjustment channel value: supported
• Fader dimming: supported
• MIDI function: supported
•U disk reading: supports FAT32 format
• RDM bidirectional protocol: supported
Carton packaging size: 84*62*30cm, weight 17kg
Flight box packaging size: 79*60*32.5cm, weight 28.5kg
