Description:
Input voltage: AC90V-240V/50-60HZ
Power consumption: 430W
LIGHT SOURCE
Light source specification: Imported new LED Module engine 400W
Light source life: 50000 hours
Lumen illuminance: 5 meters 100,000 lm
Color temperature: 8000K CRI>85
OPTICS
Dimming system: 0-100% linear adjustment
Focusing system: linear adjustment from 4 meters to 50 meters
Frost: 1 independent frost filter, soft and natural light spot
Spot zoom angle: 4-35 degrees
Wash angle:10-50 degrees
High-speed strobe: 0-30 times/sec. Adjustable speed strobe effect. Strobe macro function. CONTROL AND PROGRAMMING
Channel mode: 22/26 channels
Display mode: LCD touch screen display with display flip
Control signal: International standard DMX512. With RDM function, online software upgrade is
available, dial address code
EFFEC SECTION

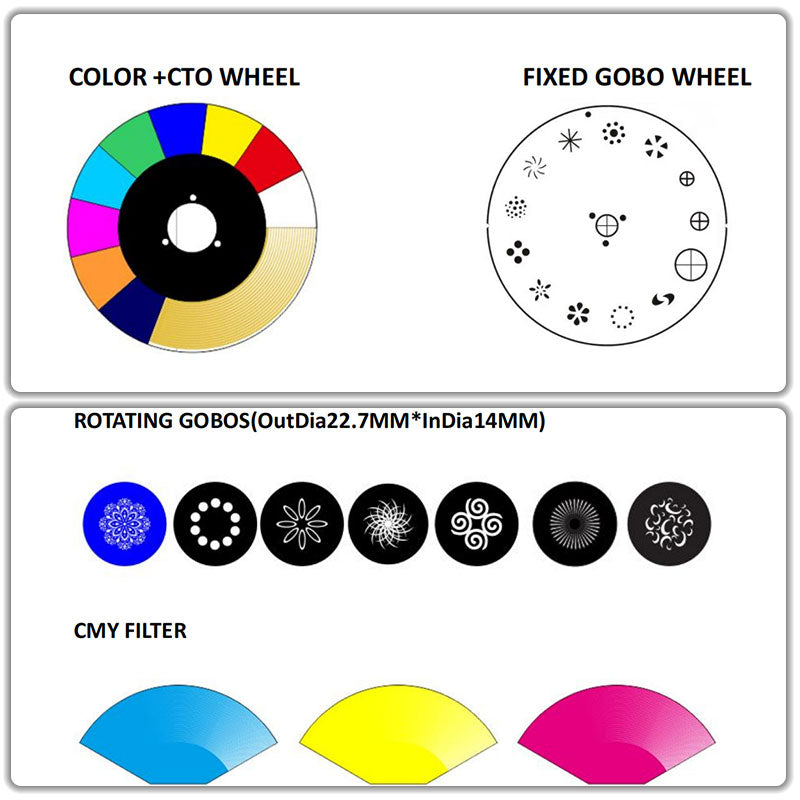

Color: 8 colors + open. Color half-color function
Color mixing system: linear CMY+CTO color mixing system
Fixed gobos: 12 fixed patterns + ioen
Rotating gobos: 7 glass patterns, each glass pattern can be independently forward and reverse
Prism system: standard single 6-facet prism and 8 prism, each prism can be independently
forward and reverse
Macro function: console reset function, self-propelled mode, master-slave mode
MOVING BODY
Horizontal scan: 540 degrees (16bit precision scan) electronic error correction
Vertical scanning: 270 degrees (16bit precision scanning) electronic error correction
Cooling method: Adopt axial fan to enhance cooling
Safety device: with electronic temperature control overheating protection,electronic temperature
control automatic power-off protection when the overheating system fails
Appearance material: high temperature resistant plastic
Working environment: -20 degrees - 40 degrees
Protection level: IP20
WEIGHT&DIMENSION
Product net weight: 22.5KG
Product size: 38*27*65CM (L*W*H)
User’s manual:LED400W 3in1 moving head light with CMY
